It may be a simple lathe or a production section consisting of many CNC machining centres, droplets getting into and floating in the air reach even the farthest part of production hall. Having breathed them in, they impair human organism causing temporary or permanent hurt from allergic reactions to lung diseases. Beyond that, forming a deposit on walking surfaces the air pollution induces hazard of slipping and accident, and in addition it can damage equipment being parts of a technological process. By means of our mechanical separators, the impurities content of the exhausted air can be filtered out, and depending on technology and filtering installation applied, the purified air can be recycled into the production hall or blown off into the open with low emission values. Structural design of equipment and systems exhausting oil and emulsion mist is a complicated task in which we can assist you. Before contacting us, please gather as many data as possible on the technology applied, with special regard to period of duty and lubricant consumption and ask your supplier to provide you with safety datasheet of used coolant. If you have any difficulties in solving problem of oil and emulsion mist exhaustion, please contact us clicking on the link or calling us. We will help!

Advantages of using exhausting equipment:

  • It prevents floor from becoming slippery from oil mist, thereby it averts serious accidents and fires.

  • It protects employees of the factory from occupational diseases because several deleterious substances are filtered out from the air.

  • It minimises noise and vibration.

  • Efficiency is at 95 per cent. The use is energy efficient and cost. Filter replacement is simple.

  • It reduces energy loss of air conditioning and prevents ceiling and walls from staining.

  • We also undertake product procurement and service, and component supply.

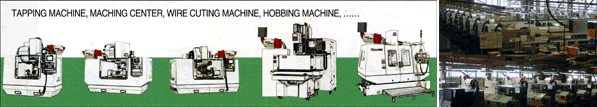

  • Exhaustion can be realized per machine using exhauster designed for the given machine; or by the use of a central exhauster connected to a pipe network linking the machines.

  • It is remarkably cost effective because it does not need separate outlet system.

Our vapour hood products:

  YMC300 YMC350 YMC400 YMC420
Voltage   3 fázis 220 V / 380 V / 440 V (50 - 60 Hz)
Motor power kW 0.4 0.75 1.5 2.5
Current A 1.7/1.0/0.8 3.5/2.0/1.6 6.5/3.7/3.3 8.4/4.9/4.2
Speed rpm 3 450
Air flow rate m3/min 7 12 25 30
Static pressure mmAq 90 120 170 180
Noise level dB 65 ± 2 68 ± 2 70 ± 2 70 ± 2
Efficiency % 95
Operating temperature °C 50
Inlet/Outlet diameter Φ 98 123 148 148
Weight kg 25 33 65 66
Filter material   Polyester



Our oil mist exhauster product:

  YOC300 YOC350 YOC400 YOC420
Voltage   3 fázis 220 V / 380 V / 440 V (50 - 60 Hz)
Motor power kW 0.4 0.75 1.5 2.5
Current A 1.7/1.0/0.8 3.5/2.0/1.6 6.5/3.7/3.3 8.4/4.9/4.2
Speed rpm 3 450
Air flow rate m3/min 5 10 20 25
Static pressure mmAq 90 120 170 180
Noise level dB 65 ± 2 68 ± 2 70 ± 2 70 ± 2
Efficiency % 95
Operating temperature °C 50
Inlet/Outlet diameter Φ 98 123 148 148
Weight kg 30 39 73 75v
Filter material   Polyester

Standard accessories: Retention flange, exhaust-pipe (2 m long)
Auxiliaries: Afterfilter unit


If you have any difficulties in solving problem of oil and emulsion mist exhaustion, please contact usclicking on the link or calling us. We will help!
