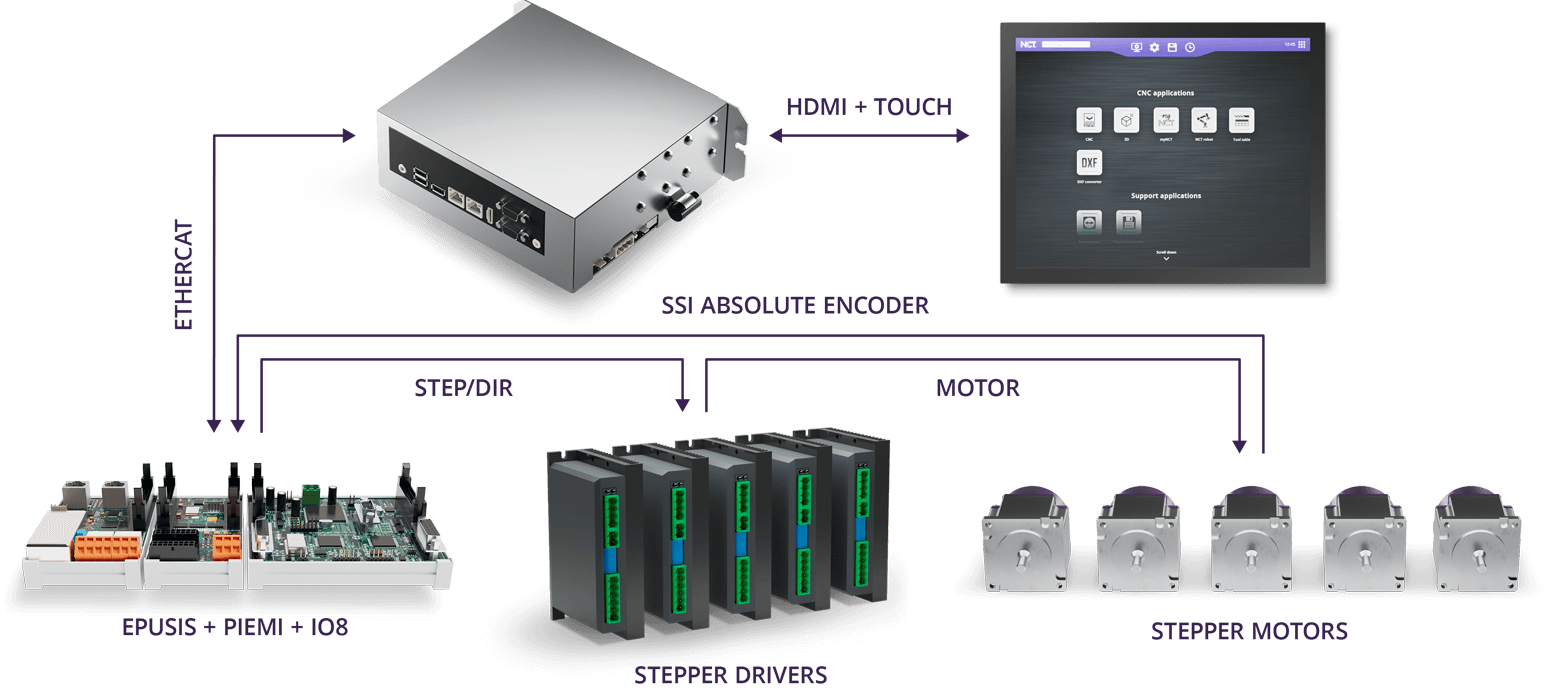

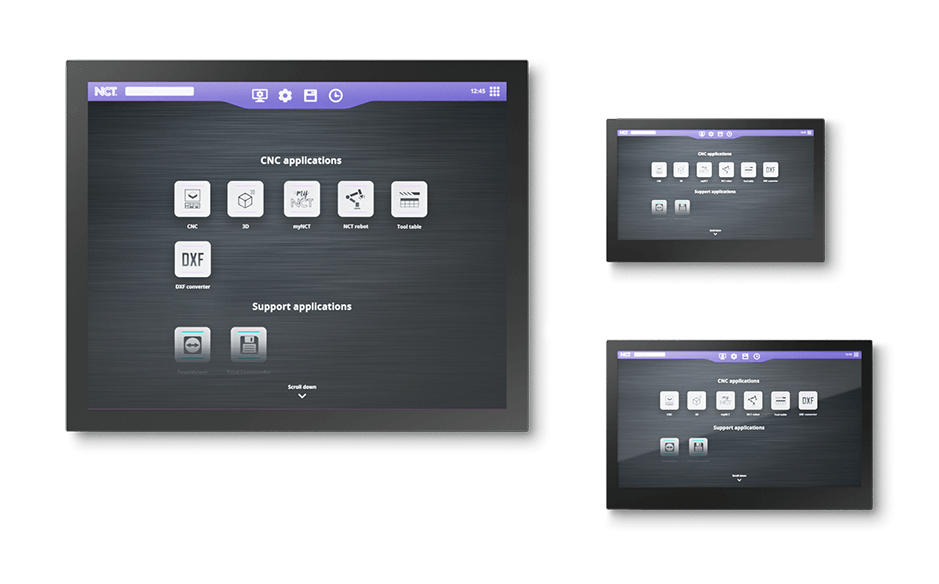

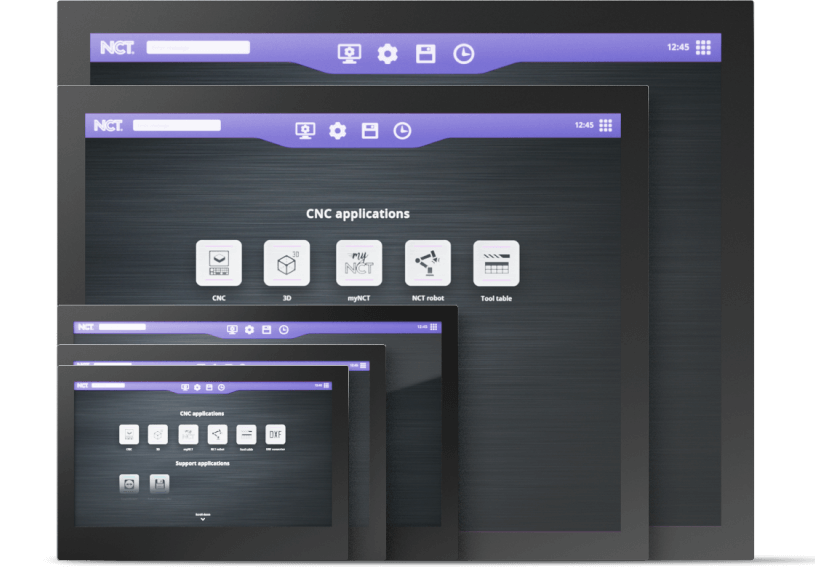

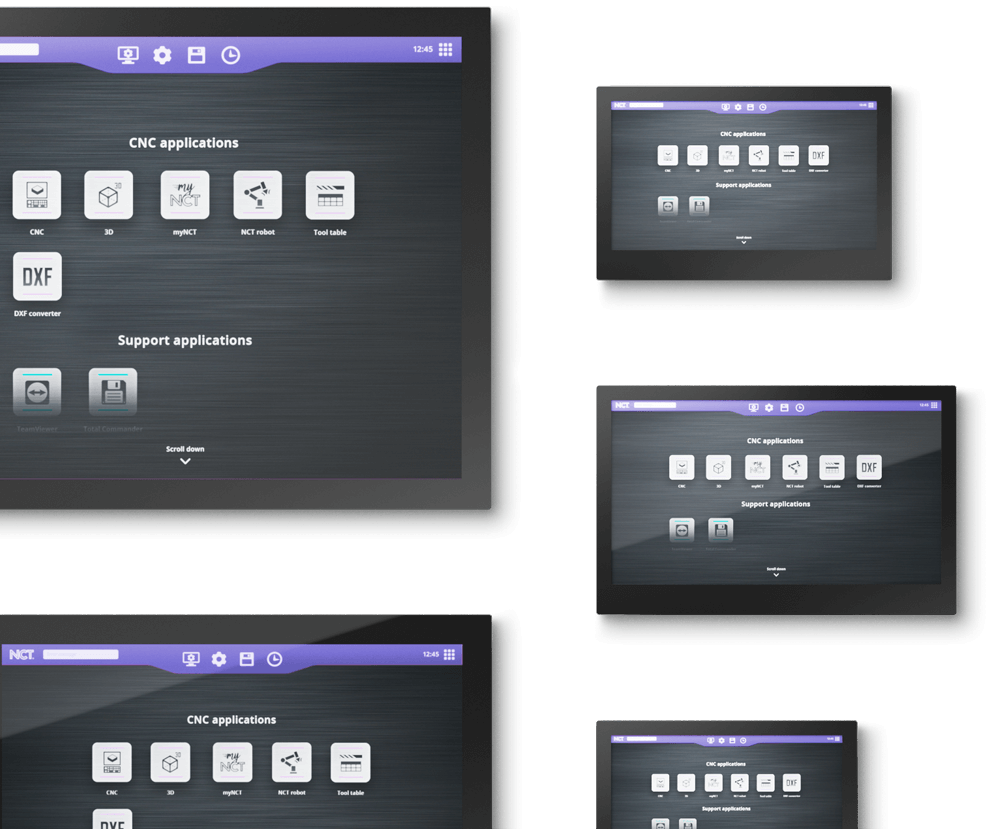

Touchscreen in different sizes 7" 8" 10" 15" 19" display

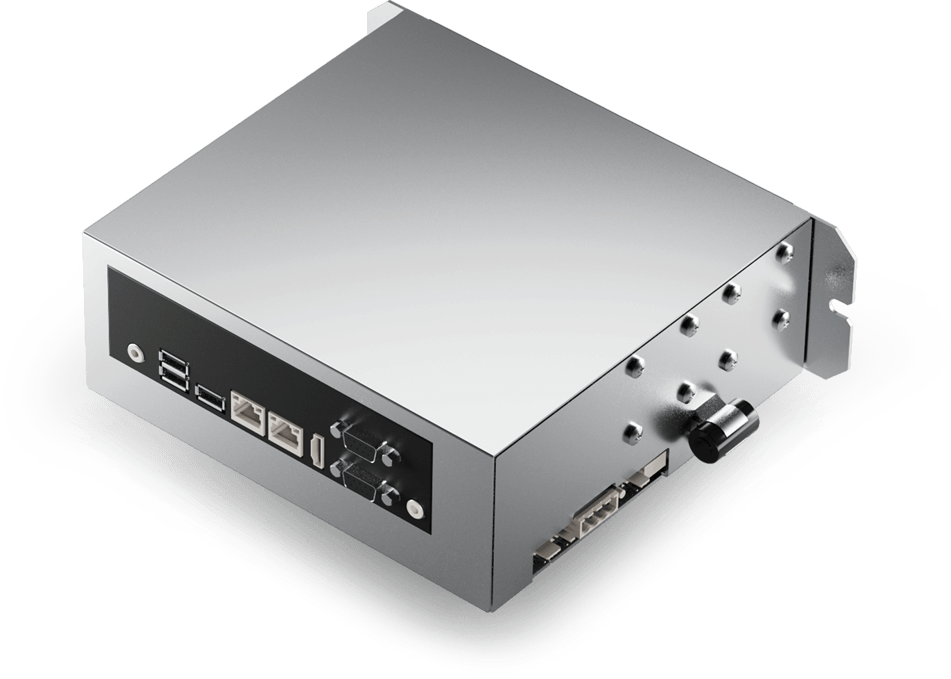

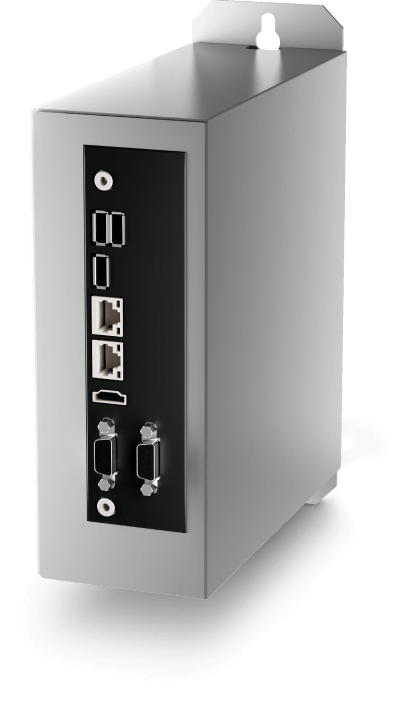

| Model | EHU03-B / EtherCAT Host unit |
|---|---|
| NCT part No. (order number) | 40-00010381-60 |
| CPU | INTEL ATOM E3845 processor, 4 core |
| Chip set | Intel |
| Motherboard | Mini-ITX |
| DRAM memory | 8 GB |
| L2 CACHE | 2 MB |
| Hard disc | 120 GB SSD |
| USB | 4 USB 2.0 |
| Operation system | WINDOWS Compact Embedded |
| Screen output terminal | VGA, LVDS |
| Ethernet | 2 pcs Realtek Gigabit LAN |
| Software | NCT 204 |
| Power supply voltage/Steady-state current/Inrush current | 24 V DC/1.3 A/2.6 A |
| Cooling fan | 1 pc |
| Operating/storage temperature/relative humidity (without condensation) | 0…+55°C/-24…+85°C / 95% |
| Weight | 1.9 kg |

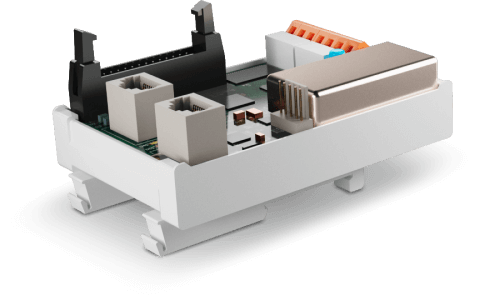

EPU-SIS / EtherCAT PERIPHERY CONTOL UNIT WITH SOFTWARE INTEGRITY SLAVE:
EPU is the "locomotive of the train" built from EtherCAT IO modules.
It is a multifunction unit that can directly be connected to EtherCAT network.

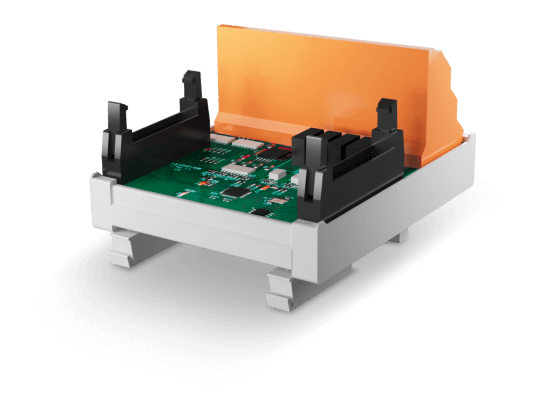

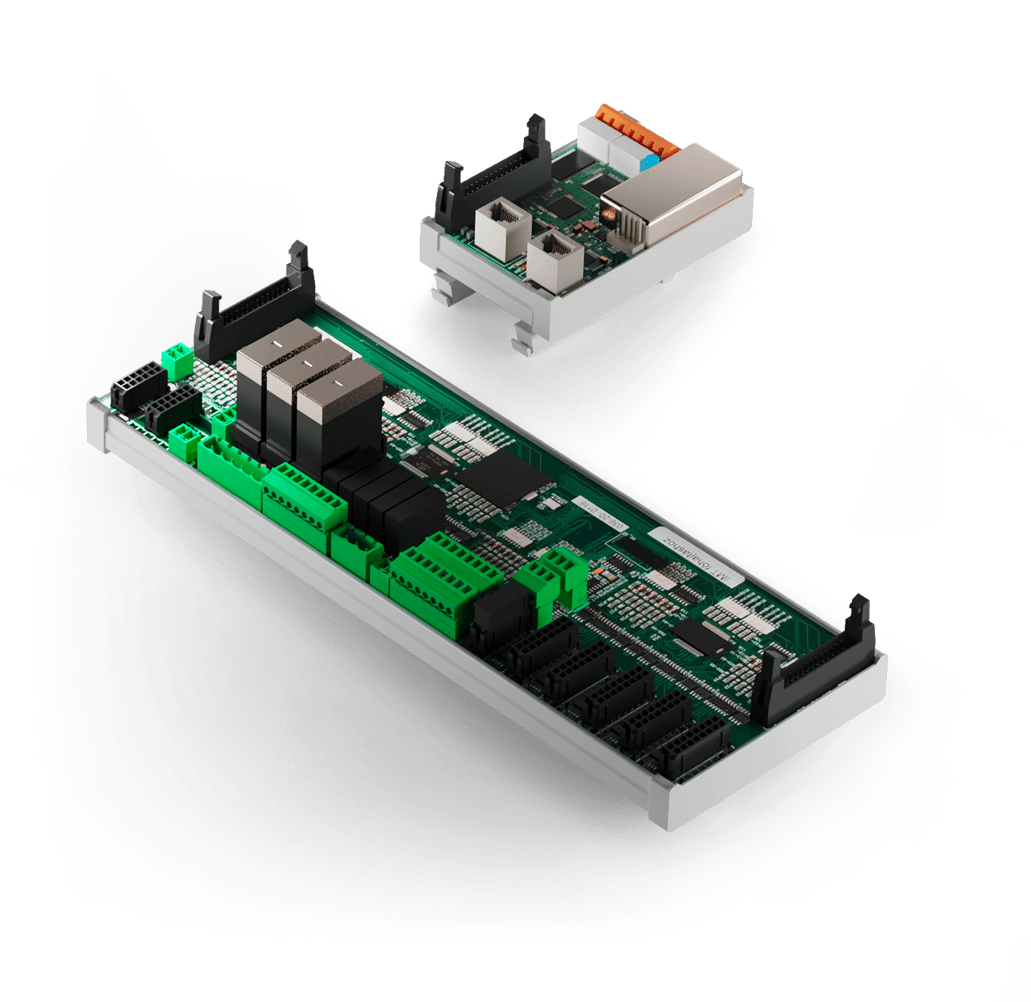

IO8 / 8-INPUT AND 8-OUTPUT MODULE:
Input module, connected to EPU via LVDS bus by flat cable. It can be placed in any position after EPU. It can be easily mounted mechanically to "C" rail.
Contents:
- 8 pcs. 24 VDC galvanically isolated 3-wire inputs
- 4 pcs 24 VDC/500 mA galvanically isolated transistor outputs
- 4 pcs 24 VDC/2 A relay Morse output

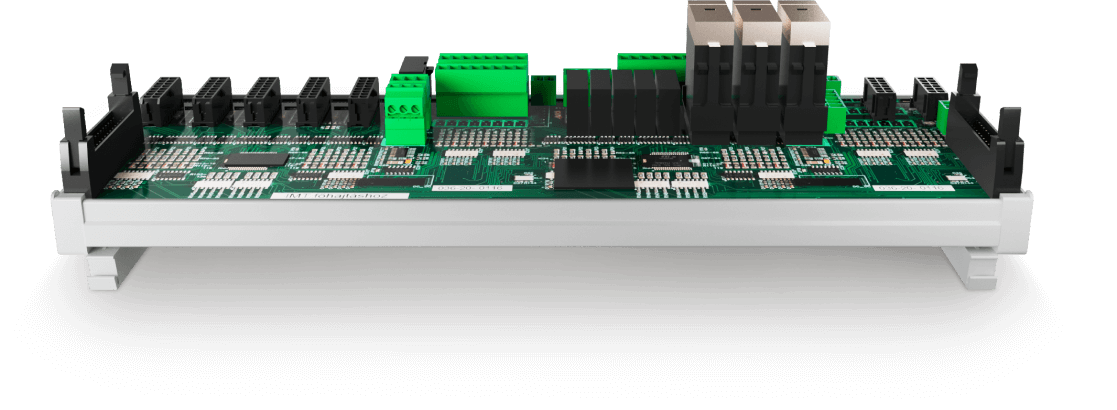

PI-EMI / ETHERCAT PREIPHERY FOR PI DENTAL MILLING MACHINE
Specification:
5 pc stepdir connection (15P DSUB):
- STEP-DIR motor output
- 1 pcs 24 VDC Input
- 1 pcs 24 VDC Output
- EnDat/SSI connection
1 pcs analog spindle connection (9P DSUB)
- 1 pcs +/-10 V analog output
- 3 pcs 24V DC Input
- 2 pcs 24 VDC Output
24 VDC IO:
- 8 pcs IN
- 5 pcs rely (5 A)
- 3 pcs rely (10 A)
Other Interface signals:
- 2 pcs analog output (0-5 V)
- 1 pcs CAN BUS connection for handwheel
- 2 pcs for touch probe (2 pc 15P DSUB)
- 1 pcs LED line drive (24 VDC/1 kohm)
- Possibility to connect to the LVDS bus
Dst-860

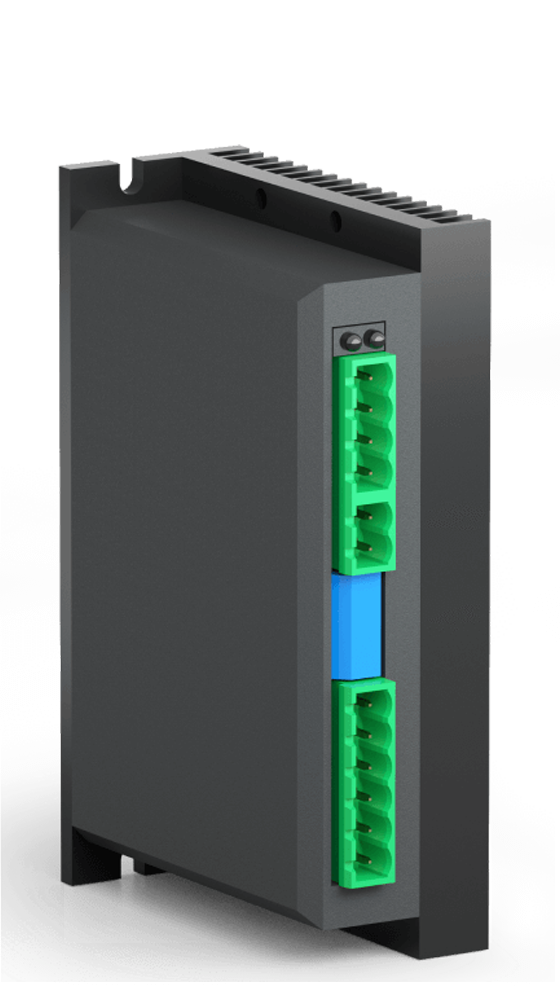

STEPPING DRIVE:
Drive voltage: 18-80 VAC or 24-90 VDC
Drive current: 2-6 A
Microsteps max.: 256
For motors: Mst4,5-Mst7,5

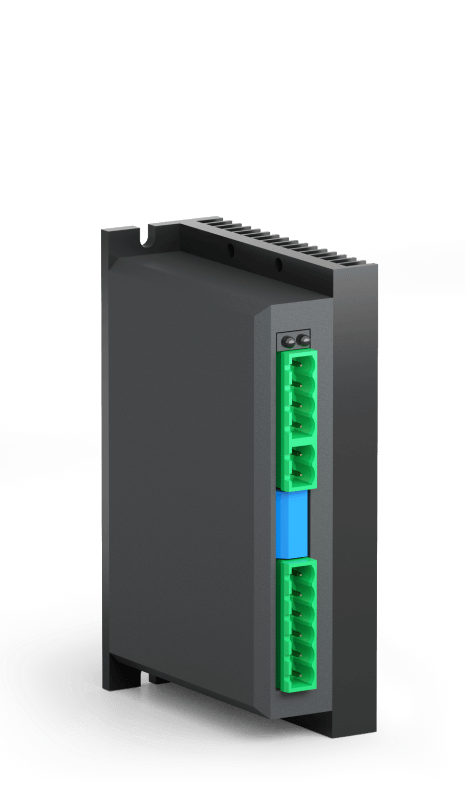

Dst-542
STEPPING DRIVE:
Drive voltage: 20-50 VDC
Drive current: 4,2 A
Microsteps max.: 256
For motors: Mst0,6-Mst3,3

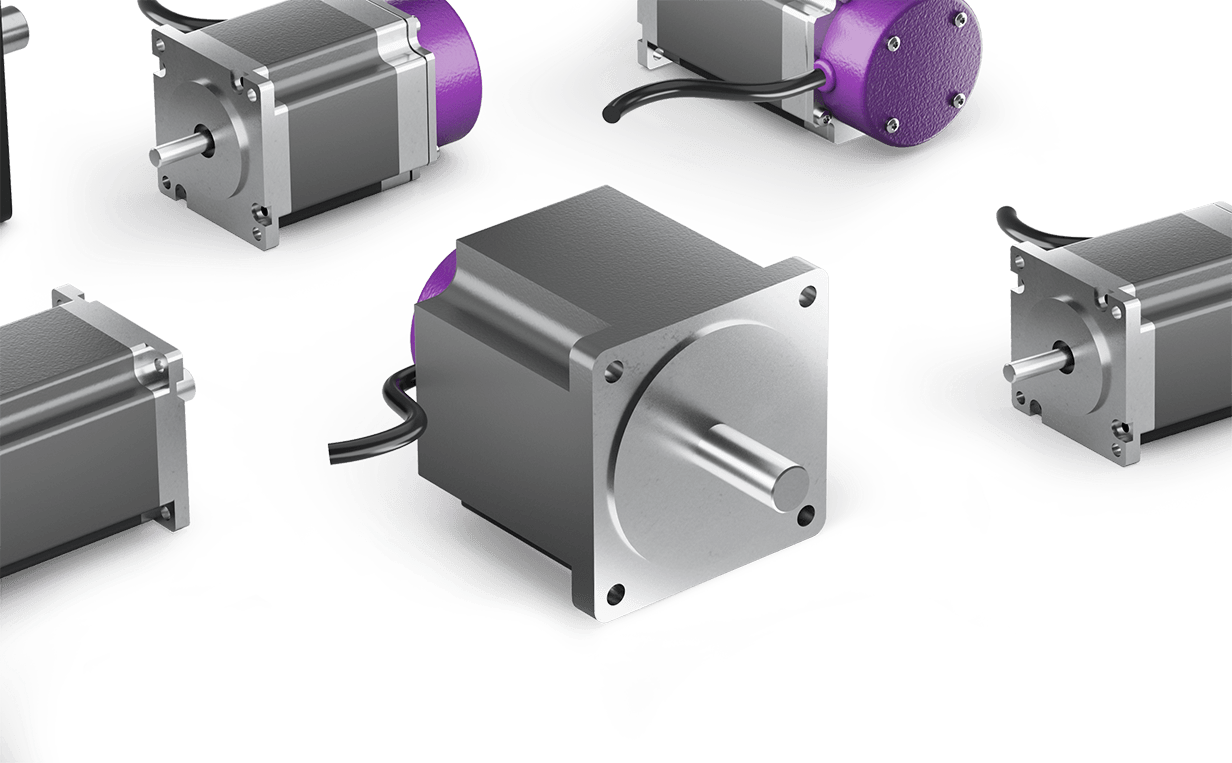

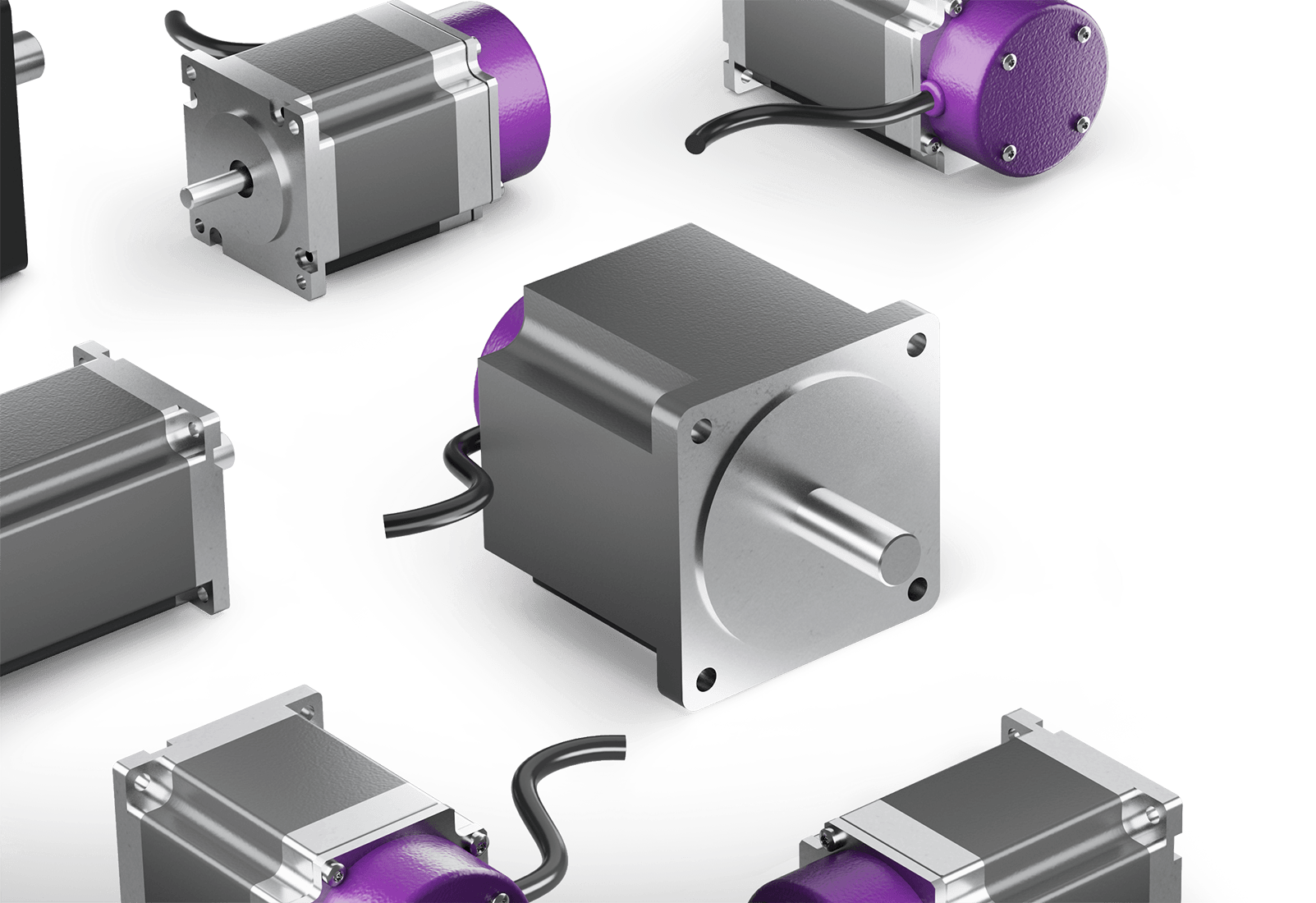

Mst0,6-EMA STEPPING MOTOR WITH ABSOLUTE ENCODER(NEMA23):
Size: Nema23, Static torque: 0,6 Nm, Max. speed: 1000 RPM
Phase current: 2,5 A, No. of phases/No. of wires: 2/4 Shaft dia. on the flange side: 6,35 mm/cylindrical
Shaft dia. on the encoder side: 6,35 mm/flatted NCT absolute encoder: EMA1410 (SSI) (4096 pos/rev/up to 1000 revolution absolute) Offered drive: MC542, Bus voltage: 48 VDC
Mst2,6-EMA STEPPING MOTOR WITH ABSOLUTE ENCODER (NEMA23):
Size: Nema23, Static torque: 2,6 Nm, Max. speed: 1000 RPM
Phase current: 3 A, No. of phases/No. of wires: 2/4, Shaft dia. on the flange side: 10 mm/cylindrical
Shaft dia. on the encoder side: 6,35 mm/flatted, NCT absolute encoder: EMA1410 (SSI) (4096 pos/rev/up to 1000 revolution absolute, Offered drive: MC542, Bus voltage: 48 VDC
Mst1,0-EMA STEPPING MOTOR WITH ABSOLUTE ENCODER(NEMA23):
Size: Nema23, Static torque: 1,0 Nm, Max. speed: 1000 RPM
Phase current: 3 A, No. of phases/No. of wires: 2/4 Shaft dia. on the flange side: 6,35 mm/cylindrical
Shaft dia. on the encoder side: 6,35 mm/flatted, NCT absolute encoder: EMA1410 (SSI) (4096 pos/rev/up to 1000 revolution absolute, Offered drive: MC542, Bus voltage: 48 VDC
Mst3,3-EMA STEPPING MOTOR WITH ABSOLUTE ENCODER (NEMA34):
Size: Nema34, Static torque: 3,3 Nm, Max. speed: 1000 RPM
Phase current: 3 A, No. of phases/No. of wires: 2/4, Shaft dia. on the flange side: 14 mm/cylindrical
Shaft dia. on the encoder side: 6,35 mm/flatted, NCT absolute encoder: EMA1410 (SSI) (4096 pos/rev/up to 1000 revolution absolute, Offered drive: MC542, Bus voltage: 48 VDC
Mst1,5-EMA STEPPING MOTOR WITH ABSOLUTE ENCODER (NEMA23):
Size: Nema23, Static torque: 1,5 Nm, Max. speed: 1000 RPM
Phase current: 3 A, No. of phases/No. of wires: 2/4, Shaft dia. on the flange side: 6,35 mm/cylindrical
Shaft dia. on the encoder side: 6,35 mm/flatted NCT absolute encoder: EMA1410 (SSI) (4096 pos/rev/up to 1000 revolution absolute, Offered drive: MC542, Bus voltage: 48 VDC
Mst4,5-EMA STEPPING MOTOR WITH ABSOLUTE ENCODER (NEMA34):
Size: Nema34, Static torque: 4,5 Nm, Max. speed: 1000 RPM
Phase current: 4,4 A, No. of phases/No. of wires: 2/4, Shaft dia. on the flange side: 14 mm/cylindrical
Shaft dia. on the encoder side: 6,35 mm/flatted, NCT absolute encoder: EMA1410 (SSI) (4096 pos/rev/up to 1000 revolution absolute, Offered drive: Dst-860, Bus voltage: 48 VDC
Mst2,1-EMA STEPPING MOTOR WITH ABSOLUTE ENCODER (NEMA23):
Size: Nema23, Static torque: 2,1 Nm, Max. speed: 1000 RPM
Phase current: 3 A, No. of phases/No. of wires: 2/4, Shaft dia. on the flange side: 10 mm/cylindrical
Shaft dia. on the encoder side: 6,35 mm/flatted, NCT absolute encoder: EMA1410 (SSI) (4096 pos/rev/up to 1000 revolution absolute, Offered drive: MC542, Bus voltage: 48 VDC
Mst7,5-EMA STEPPING MOTOR WITH ABSOLUTE ENCODER(NEMA34):
Size: Nema34, Static torque: 7,5 Nm, Max. speed: 1000 RPM
Phase current: 4,4 A, No. of phases/No. of wires: 2/4, Shaft dia. on the flange side: 14 mm/cylindrical
Shaft dia. on the encoder side: 6,35 mm/flatted, NCT absolute encoder: EMA1410 (SSI) (4096 pos/rev/up to 1000 revolution absolute, Offered drive: MC860, Bus voltage: 48 VDC
