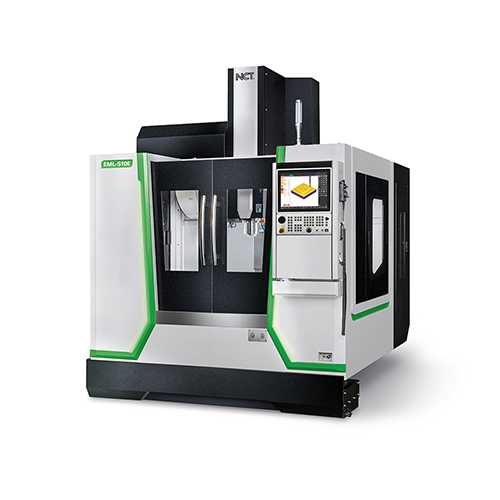

EML-510E CNC milling machines
Construction and characteristics:+
- CONSTRUCTION:
- Rigid casting bed, column and slides
- Mounted, precision, ball (L) or Roller (R) type bearing linear guideway on all axis
- Slide system and ball screws with central oil lubrication
- Mechanical counterweight
- Telescopic metal guideway cover on every axes heads
- Y axis cover moves under column
- Spacious working area, wide open working space door
- Easy to open, large glass side working space doors
- SPINDLE:
- Belt driven spindle
- Spindle taper #40, DIN or BT tooling
- Spindle Taper cleaning by airblow
- Spindle bearing protection by compressed air
- AXIS:
- Ground, highprecision double nut ball screws
- Ball screws pretensioned and supported in bearings at both ends
- MAGAZINE:
- Drum type magazine with arm type ATC
Control and electronics:+
- NCT 304 smart touch CNC (touchscreen)
- EnDat 2.2 absolute measuring system, 0,00005 mm positioning resolution and nano interpolation
Warranty:+
- 36 months warranty for the CNC and for all the electric parts of the machine
- 12 months warranty for the mechanical part of the machine
- CE conformity
Specifications:+
- WORKING AREA:
- Table size: 600 x 320 mm
- T-slot number x size x distance: 14 x 3 x 100 mm
- Table load capacity: 300 kg
- Spindle nose distance from table surface: 130 - 590 mm
- Spindle centre distance from column: 430 mm
- Positioning accuracy: < 0,005 mm
- Repeatability accuracy: < 0,003 mm
- AXIS:
- Number and type of X / Y / Z guideways: Lineáris 2 / 2 / 2
- X travel: 510 mm
- Y travel: 410 mm
- Z travel: 460 mm
- Rapid travel speed max. of X / Y / Z axis: 36 / 36 / 30 m/min
- Max. feed rate: 30 m/min
- SPINDLE:
- Max.speed (standard): 10000 RPM
- Spindle taper size (standard): #40
- Tooling: DIN / BT 40
- Taper cleaning: Nagynyomású levegővel
- Drive (standard): Szíj
- SPINDLE MOTOR:
- Max. Power (standard): 16 kW
- Max. torque (standard): 110 Nm
- Cooling: Levegő
- TOOL MAGAZINE:
- Magazine type: Karos
- Number of tool positions: 20
- Max. tool length: 300 mm
- Max. tool diameter: 80 (150) mm
- Max. tool weight: 6 kg
- Tool change time (T to T): 4 sec
- INSTALLATION :
- Floor space x height: 2000 x 2140 x 2460 mm
- Net machine weight: 2800 kg
Standard accessories:+
- STANDARD ACCESSORIES:
- Magazine
- Umbrella type magazine
- Spindle bearing protection by compressed air
- Levelling pads and bolts
- Three colour status lamp
- LED lights
- Coolant system
- Air cooling
- Watergun
- CONTROL AND ELECTRONICS:
- STANDARD ACCESSORIES:
- Magazine
Options:+
- OPTIONS:
- Fully enclosed splash guard (enclosed at machine top)
- Increased spindle speed
- Increased spindle power
- Drum type magazine, Arm type, ATC
- Cooling Through Spindle
- High pressure working space washing apparatus
- Pushbutton working space washing gun
- Oil skimmer
- Coolant filtering with paperfilter
- Spiral type chip conveyor
- CNC rotary / indexing tables, tailstocks and rotating supports
- Manual and CNC tilting rotary tables Hand and CNC tilting rotary tables
- Increased, longterm accuracy with Heidenhain linear scales
- Power operated chucks and vises
- Workpiece and tool probe preparation
- Workpiece probe (cabled, infrared)
- Tool probe (cabled, infra)
- Lifting the column
- Mist extractor
- BT tooling
- CONTROL AND ELECTRONICS:
- External, swing-aside control panel
- External handwheel
- myNCT graphical programming
- CADCAM softwares
- Switch off the machine from technological program
- Partial or full installation of axis 4
- Partial or full installation of axis 5
- Partial or full installation of axis 4 or 5
- Outputs operated by M function
- NCT simulator
- Remote access
- Robot cell junction interface
- Delivery, Loading, movement
- Workpiece technologization
