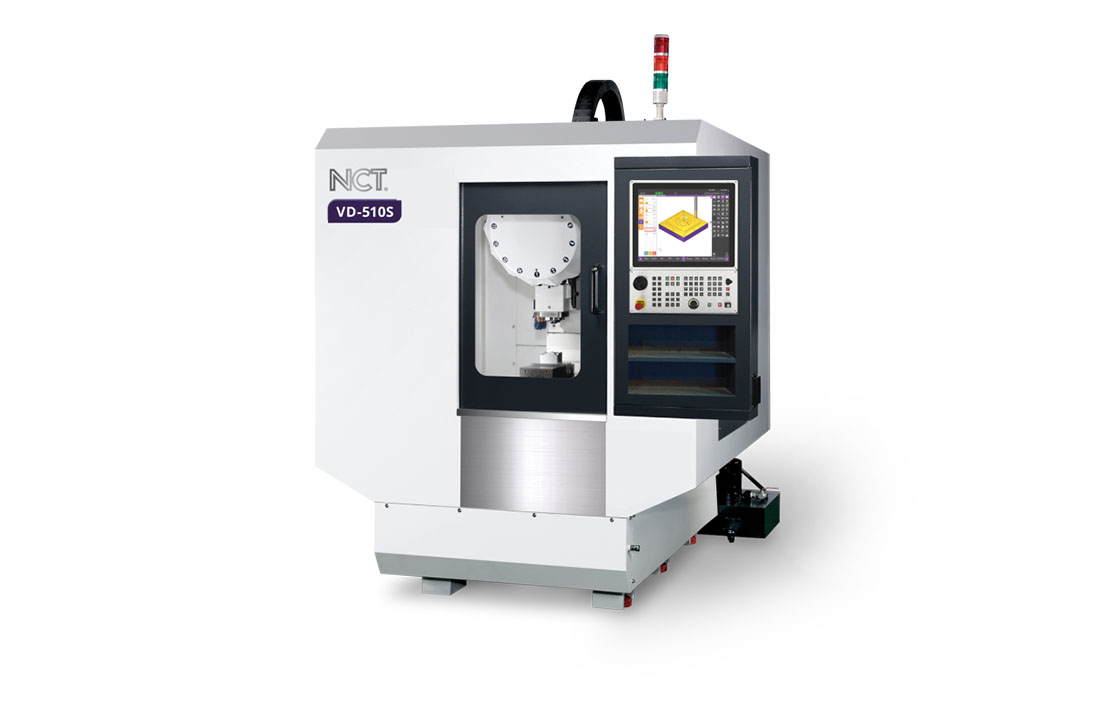

Mounted, precision, ball (L) or Roller (R) type bearing linear guideway on all axis
Slide system and ball screws with central oil lubrication
Without counterweight
Telescopic metal guideway cover on every axes heads
Y axis cover moves under column
SPINDLE:
Direct drive spindle (W/O belt drive)
BT30 spindle taper
Headstock thermal stabilization with digital oil cooler (opt.)
Spindle Taper cleaning by airblow
Headstock spindle bearings with life long grease lubrication
AXIS:
48 m/min rapid speed on all axes
MAGAZINE:
Extremly rapid tool change through servo motor driven magazine
NCT 304 smart touch CNC (touchscreen)
EnDat 2.2 absolute measuring system, 0,00005 mm positioning resolution and nano interpolation
36 months warranty for the CNC and for all the electric parts of the machine
12 months warranty for the mechanical part of the machine
CE conformity
WORKING AREA:
Table size: 650 x 400 mm
T-slot number x size x distance: 14 x 3 x 125 mm
Table load capacity: 250 kg
Spindle nose distance from table surface: 170 - 435 mm
Spindle centre distance from column: 460 mm
AXIS:
Number and type of X / Y / Z guideways: Linear 2 / 2 / 2
X travel: 510 mm
Y travel: 406 mm
Z travel: 330 mm
Rapid travel speed max. of X / Y / Z axis: 48 / 48 / 48 m/min
Max. feed rate: 48 m/min
SPINDLE:
Max.speed (standard): 12000 RPM
Max. speed (option.): 20000 RPM
Spindle taper size (standard): #30
Tooling: BT 30
Taper cleaning: Air
Drive (standard): Direct
Headstock cooling: (opt) Oilcooler
SPINDLE MOTOR:
Max. Power (standard): 5,5 kW
Max. torque (standard): 18 Nm
Cooling: Air
TOOL MAGAZINE:
Magazine type: Disk type
Number of tool positions: 21
Max. tool length: 200 mm
Max. tool diameter: 80 mm
Max. tool weight: 3 kg
Tool change time (T to T): 1,6 sec
Tool change time (C to C): 2,5 sec
Tool change time 180°: 2,8 sec
INSTALLATION :
Floor space x height: 1600 x 2150 x 2320 mm
Net machine weight: 2600 kg
Electrical connection: 3 x 400 VA
STANDARD ACCESSORIES:
Magazine
Disc type magazine
Levelling pads and bolts
Three colour status lamp
LED lights
Watergun
Machine service rack
CONTROL AND ELECTRONICS:
STANDARD ACCESSORIES:
Magazine
Fully enclosed splash guard (enclosed at machine top)
Increased spindle speed
Increased capacity of tool magazine
Preparation of through tool cooling
Cooling Through Spindle
Pushbutton working space washing gun
Oil skimmer
Coolant filtering with paperfilter
Spiral type chip conveyor
CNC rotary / indexing tables, tailstocks and rotating supports
Power operated chucks and vises
Workpiece and tool probe preparation
Workpiece probe (infra)
Tool probe (cabled, infra)
Lifting the column
Outer working space lights
Hydraulic / pneumatic actuating system for table
Mist extractor
Automatic door movement
CONTROL AND ELECTRONICS:
External handwheel
myNCT graphical programming
CADCAM softwares
HSHP (high speed high precision machining)
1 G Spindle and axes acceleration
Sending Error messaege via SMS
Switch off the machine from technological program
Three colour status lamp
Partial or full installation of axis 4
Partial or full installation of axis 5
Green technology
Outputs operated by M function
NCT simulator
Remote access
Robot cell junction interface
