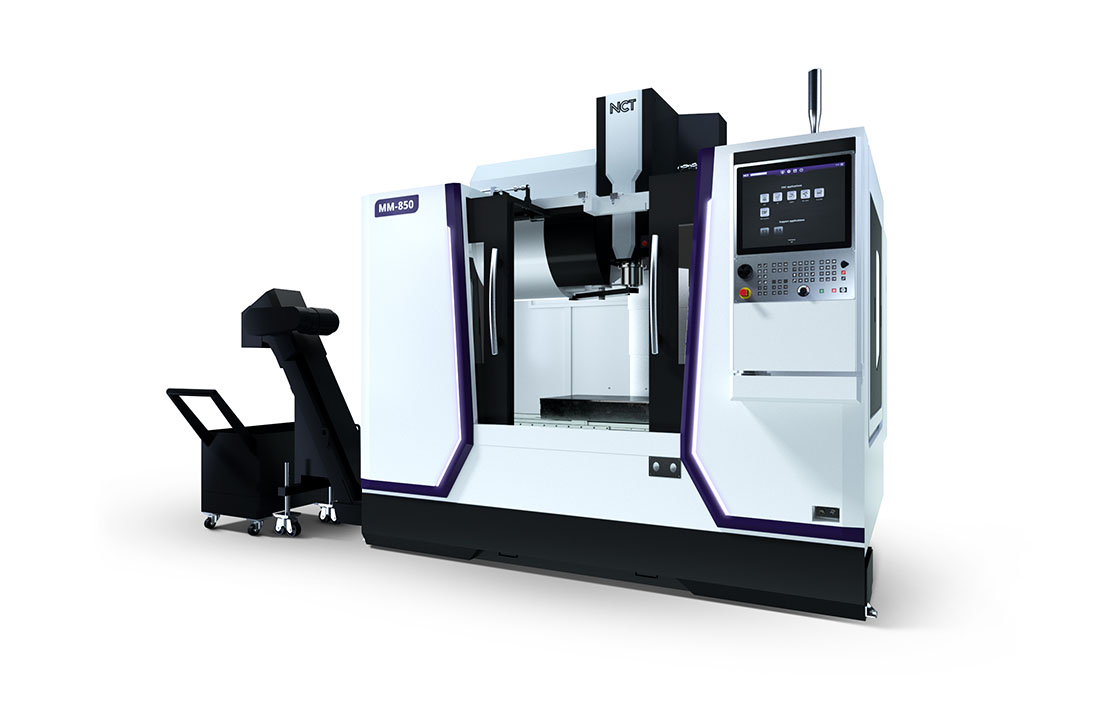

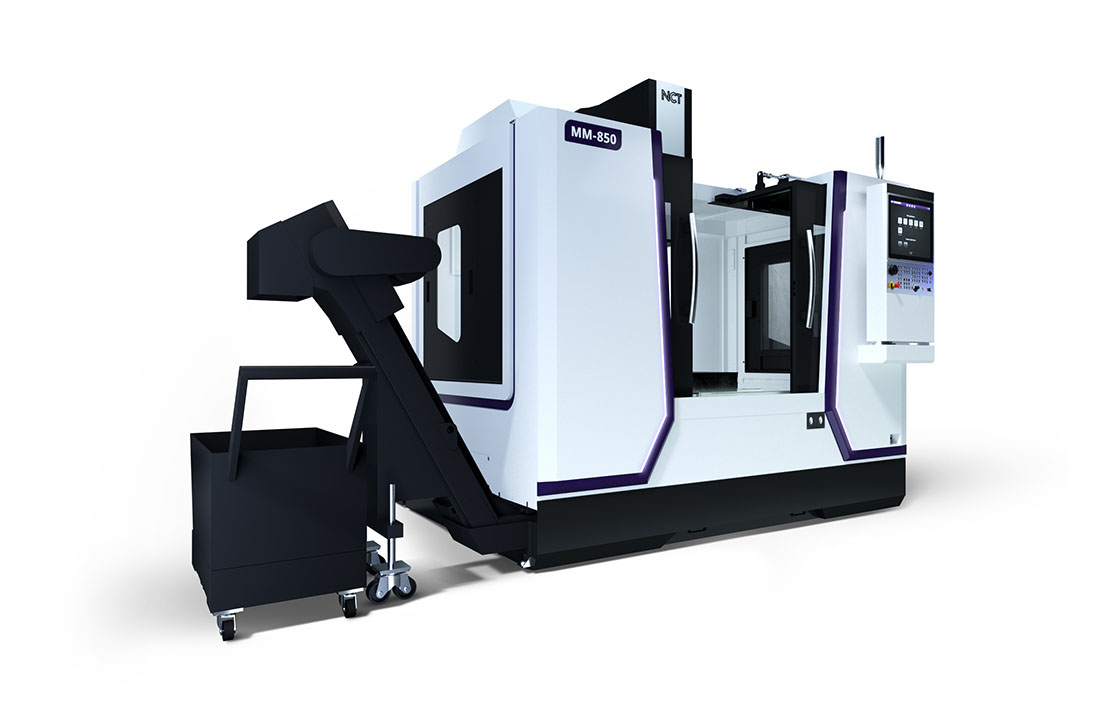

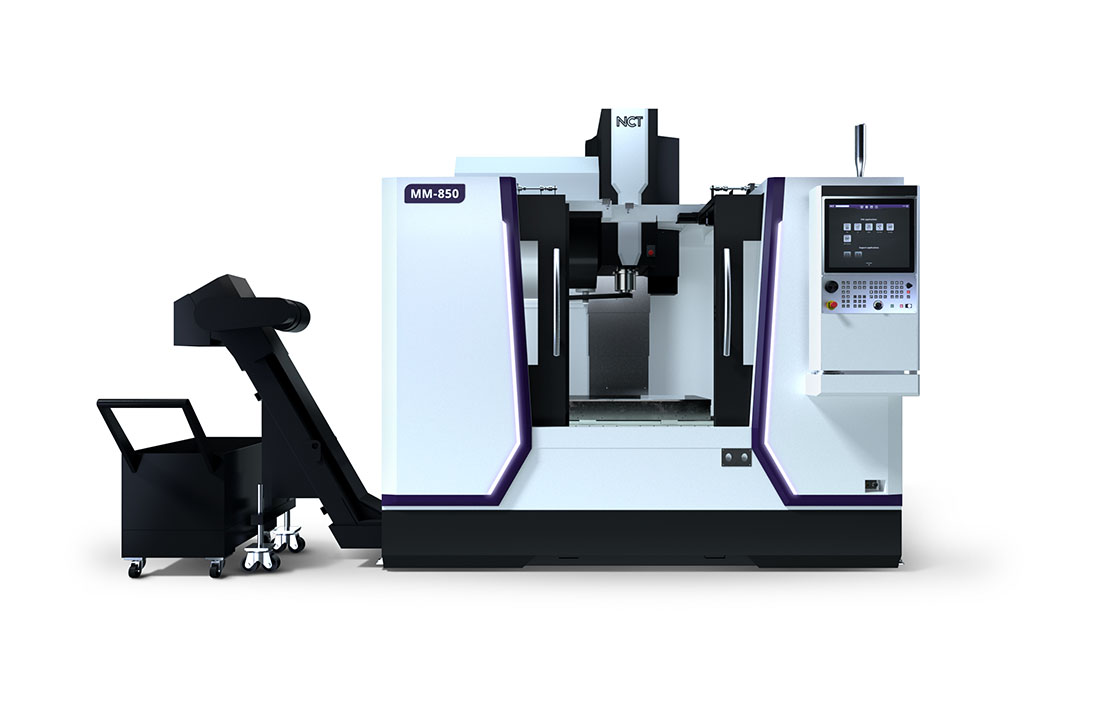

Mounted, precision, ball (L) or Roller (R) type bearing linear guideway on all axis
Slide system and ball screws with central oil lubrication
Mechanical counterweight
Telescopic metal guideway cover on every axes heads
Y axis cover moves under column
Spacious working area, wide open working space door
Easy to open, large glass side working space doors
SPINDLE:
Belt driven spindle
Spindle taper #40, DIN or BT tooling
Spindle Taper cleaning by airblow
Spindle bearing protection by compressed air
AXIS:
Ground, highprecision double nut ball screws
Ball screws pretensioned and supported in bearings at both ends
MAGAZINE:
Drum type magazine with arm type ATC
NCT 304 smart touch CNC (touchscreen)
EnDat 2.2 absolute measuring system, 0,00005 mm positioning resolution and nano interpolation
36 months warranty for the CNC and for all the electric parts of the machine
12 months warranty for the mechanical part of the machine
CE conformity
WORKING AREA:
Table size: 950 x 500 mm
T-slot number x size x distance: 18 x 5 x 100 mm
Table load capacity: 600 kg
Spindle nose distance from table surface: 140 - 650 mm
Spindle centre distance from column: 556 mm
Positioning accuracy: < 0,005 mm
Repeatability accuracy: < 0,003 mm
AXIS:
Number and type of X / Y / Z guideways: Linear 2 / 2 / 2
X travel: 850 mm
Y travel: 510 mm
Z travel: 510 mm
Rapid travel speed max. of X / Y / Z axis: 36 / 36 / 36 m/min
Max. feed rate: 36 m/min
SPINDLE:
Max.speed (standard): 10000 RPM
Spindle taper size (standard): #40
Tooling: DIN / BT 40
Taper cleaning: High pressure air
Drive (standard): Belt
SPINDLE MOTOR:
Max. Power (standard): 16 kW
Max. torque (standard): 110 Nm
Cooling: Air
TOOL MAGAZINE:
Magazine type: Arm
Number of tool positions: 24
Max. tool length: 300 mm
Max. tool diameter: 80 (150) mm
Max. tool weight: 6 kg
INSTALLATION :
Floor space x height: 2600 x 2330 x 2685 mm
Net machine weight: 4200 kg
STANDARD ACCESSORIES:
Magazine
Umbrella type magazine
Spindle bearing protection by compressed air
Levelling pads and bolts
Three colour status lamp
LED lights
Coolant system
Air cooling
Watergun
CONTROL AND ELECTRONICS:
STANDARD ACCESSORIES:
Magazine
Fully enclosed splash guard (enclosed at machine top)
Increased spindle speed
Increased spindle power
Increased capacity of tool magazine
Drum type magazine, Arm type, ATC
Preparation of through tool cooling
Cooling Through Spindle
High pressure working space washing apparatus
Pushbutton working space washing gun
Oil skimmer
Coolant filtering with paperfilter
Chain type chip conveyor
CNC rotary / indexing tables, tailstocks and rotating supports
Manual and CNC tilting rotary tables Hand and CNC tilting rotary tables
Increased, longterm accuracy with Heidenhain linear scales
Power operated chucks and vises
Workpiece and tool probe preparation
Workpiece probe (cabled, infrared)
Tool probe (cabled, infra)
Lifting the column
Outer working space lights
Mist extractor
BT tooling
Automatic door movement
CONTROL AND ELECTRONICS:
External, swing-aside control panel
19" touchscreen monitor
External handwheel
myNCT graphical programming
CADCAM softwares
Spindle and axis motors quadratic acceleration
HSHP (high speed high precision machining)
Sending Error messaege via SMS
Switch off the machine from technological program
Three colour status lamp
Partial or full installation of axis 4
Partial or full installation of axis 5
Green technology
Outputs operated by M function
NCT simulator
Remote access
Robot cell junction interface
